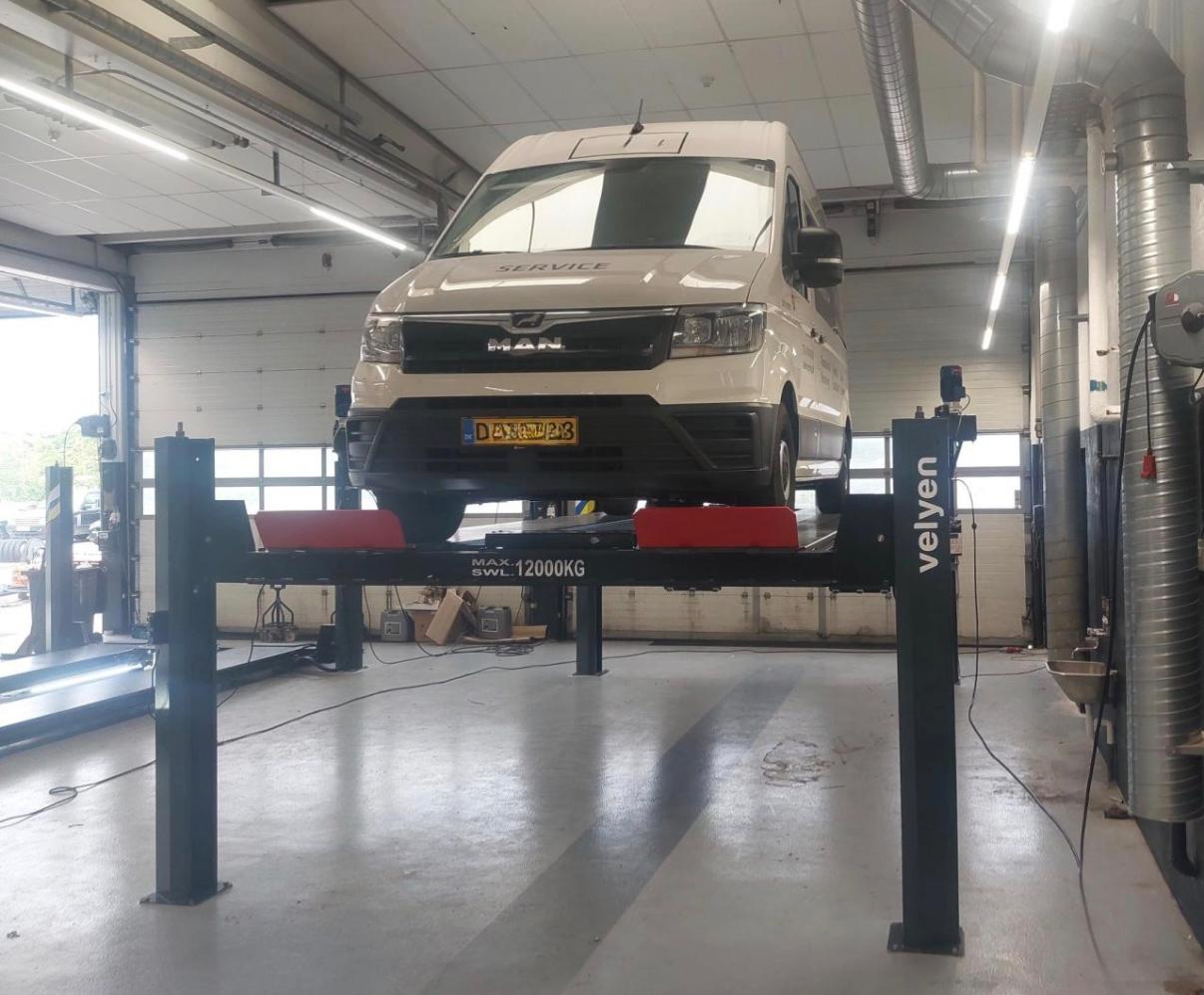

HEAVY DUTY COMMERCIAL VEHICLES 4 post hydraulic 12 Tns FLAT MOVABLE PLATFORM 6300×712 mm

SKU: 4ED0700N. Categories: 4 Post Lifts, Lifts

Description

Because it’s electro-hydraulic in operation (with cables, pulleys & pins)
Because there are no noisy spindles or gearboxes to go wrong!!!!
Because it’s fitted with a patented safety system meaning no air supply required.
Because its manufactured 100% in Spain
Because its very reliable.
Because its very competitively priced.

·100% it’s fitted with a patented safety system meaning no air supply required electro-hydraulic in operation (with cables, pulleys & pins) .
·No noisy spindles or gearboxes.
4 POST HYDRAULIC COMMERCIAL VEHICLE LIFT

Load capacity	12000 Kg
Platform lengths	6220 mm
Platform widths	710 mm
Width between columns	3265 mm
Distance between platforms	780-1150 mm
Minimum height	220 mm
Lifting height	1660 mm
Lifting time	65”
Overall length	7150 mm
Overall width	3735 mm
Motor	3 Phase 230/400 V 50/60 Hz. 3 KW

HEAVY DUTY COMMERCIAL VEHICLES 4 post hydraulic 12 Tns FLAT MOVABLE PLATFORM 6300×712 mm
