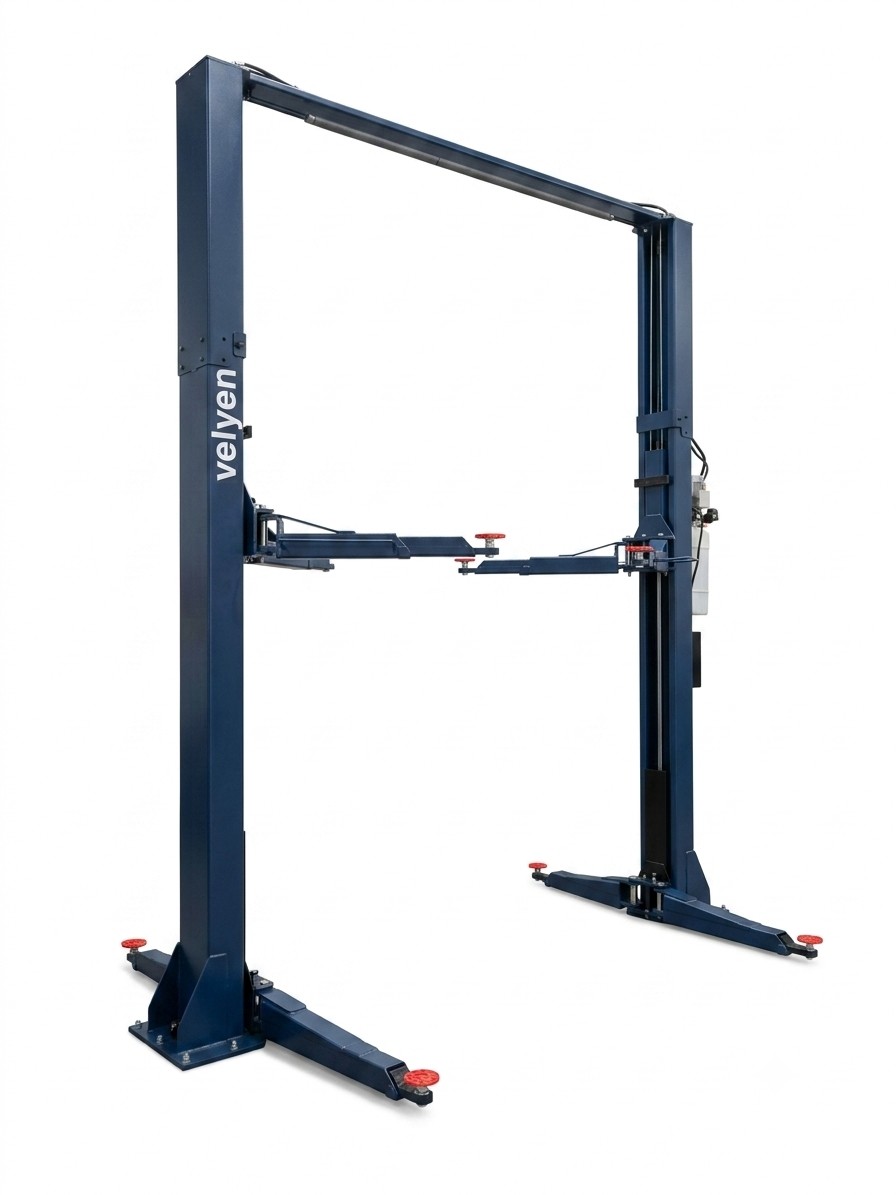

Hydraulic 2Post Lift 4000 Kg Commercial Vans, automatic locking

SKU: 4EC2400. Categories: 2 Post Lifts, Lifts

Description

Now fitted with larger capacity motor 3 Kw.
Lifting Capacity now updated to 6,000kgs

Note Arm configuration

The New Velyen 4EC1400 will be supplied from the factory with a standard
4 lifting arm configurations giving 5.500kgs lifting capacity.
The arms fitted as standard will all be three stage.
These arms will extend from 900mm closed to 1750mm open. (symmetrical)

Note : Supplied in the delivery box will be 2 more arm length extensions.
These can be fitted quickly to the rear arms for some extra-long wheelbase vans.
With this arm configuration fitted the lift will become asymmetrical.
2 x Rear Arms 900-2050mm
2 x Front Arms 900-1750mm
In this configuration this lifting capacity is reduced to 4.000kgs

•Reinforced arms and arms for added safety.
•Arms of 3 sections.
•Manual raelase of safety wedges.
•Pad extensions of 70 – 140 mm.
•Control box with ON / OFF switch and independent UP and DOWN pushbuttons.
•Synchronization and safety against obstacles by cable.
•Automatic safety stop in case of cable breakage.
•The New Velyen 4EC1400 will be supplied from the factory with a standard 4 lifting arm configurations giving 5.500kgs lifting capacity. The arms fitted as standard will all be three stage. These arms will extend from 900mm closed to 1750mm open. (symmetrical)
Note: Supplied in the delivery box will be 2 more arm length extensions. These can be fitted quickly to the rear arms for some extra-long wheelbase vans. With this arm configuration fitted the lift will become asymmetrical.
2 x Rear Arms 900-2050mm
2 x Front Arms 900-1750mm
In this configuration this lifting capacity is reduced to 4.000kgs

Width between columns	2800 mm
Load capacity	4000 Kg
Minimum height	100 mm
Pad extensions height	1840 mm
Lifting time	45”
Crossbar height (ind. – out.)	4500 mm
Lifting time	40”
Arm length (min-max)	860-1440 mm
Overall width	3340 mm
Motor	3 Phase 230/400 V 50/60 Hz. 3 KW

Hydraulic 2Post Lift 4000 Kg Commercial Vans, automatic locking
